Diaphragm Seal Systems

Industrial Diaphragm Seals for Critical Process Measurement.

Haygor manufactures precision diaphragm seals engineered to isolate pressure gauges, transmitters, switches, and other instrumentation from challenging process media while maintaining reliable pressure measurement.

From threaded and flanged diaphragm seals to sanitary, flush, specialty, remote, and temperature-compensating assemblies, Haygor configures seal systems around process pressure, temperature, chemical compatibility, connection requirements, wetted materials, instrument type, and installation conditions. Solutions are available for corrosive, viscous, abrasive, clog-prone, high-temperature, high-pressure, and sanitary process applications across demanding industrial environments.

Configure a Seal Talk to Haygor
Threaded Flanged Sanitary Specialty & Custom

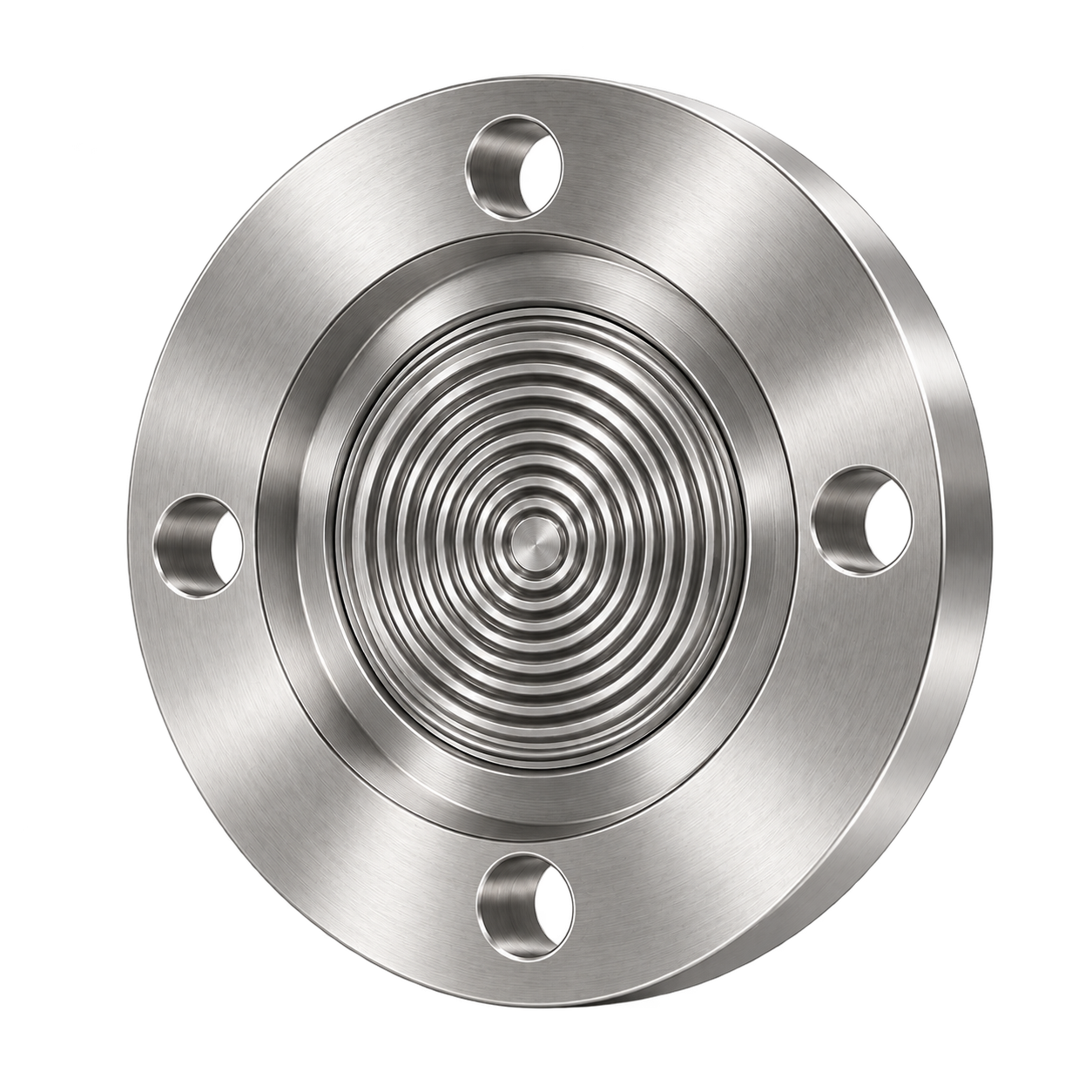

Industrial diaphragm seals for pressure gauges and process instrumentation
Engineered Around the Application Pressure · Temperature · Media · Materials · Connection
Diaphragm Seal Solutions

Precision Diaphragm Seal Solutions Built for Demanding Applications

Haygor designs precision-engineered diaphragm seals to protect instrumentation, preserve measurement accuracy, and perform reliably in harsh industrial process environments.

Engineered Protection

Accurate, Reliable Measurement in Harsh Process Conditions

Haygor is a trusted manufacturer of precision-engineered diaphragm seals designed to deliver accurate, reliable measurement in the most demanding industrial environments. From corrosive media and extreme temperatures to high-pressure and viscous applications, Haygor diaphragm seals protect instrumentation while ensuring stable, repeatable performance.

Diaphragm seals play a critical role in pressure measurement, differential pressure monitoring, and level measurement systems. By isolating sensitive instruments from harsh process conditions, they help prevent damage, reduce maintenance, and extend equipment life.

Haygor designs diaphragm seals to perform reliably in applications where accuracy is essential and failure is not an option.

Used Across Critical Industries

Haygor diaphragm seal solutions are used across demanding industrial markets where process reliability, measurement integrity, and equipment protection are essential.

  • Oil & Gas
  • Chemical Processing
  • Water & Wastewater
  • Pulp & Paper
  • Power Generation
  • Industrial Manufacturing

Engineered Around the Application

Each seal is engineered to meet the specific requirements of the application, including pressure range, temperature, chemical compatibility, and installation constraints.

  • Threaded Configurations
  • Flanged Configurations
  • Custom-Engineered Designs
  • Corrosive Media
  • Extreme Temperatures
  • High-Pressure Service
  • Viscous Applications

Whether you need threaded, flanged, or custom-engineered configurations, Haygor provides diaphragm seal solutions tailored to your process.

Configure Your Seal Contact Haygor

Product Configurator

BUILD THE RIGHT
dIAPHRAGM SEAL

fOR YOUR APPLICATION

Select your seal, select your options and get to a
quote faster with Haygor's seal configurator.

Launch Configurator
Application-Driven Engineering

What Goes Into the Right Diaphragm Seal?

Selecting a diaphragm seal involves more than choosing a connection size. Haygor evaluates the complete application — from process media and operating conditions to materials, instrumentation, and installation requirements — to help build a seal system engineered for reliable measurement and long-term performance. Proper diaphragm seal selection can help protect pressure gauges, transmitters, and other instrumentation from corrosive, viscous, abrasive, or high-temperature process media. By matching the seal design, diaphragm material, fill fluid, and process connection to the application, Haygor helps customers improve measurement reliability, extend instrument life, and reduce maintenance requirements in demanding industrial environments across critical process measurement applications.

Process Media

The chemical composition, viscosity, solids content, and other characteristics of the process media help determine the appropriate diaphragm, wetted materials, and seal configuration.

Pressure Conditions

Normal operating pressure, maximum pressure, vacuum conditions, and potential pressure fluctuations are considered when configuring a diaphragm seal assembly for the application.

Operating Temperature

Process and ambient temperatures can influence seal construction, system fill, instrument placement, and whether remote mounting or additional temperature-management solutions should be considered.

Wetted Materials

Material compatibility is evaluated around the process environment so the diaphragm and other wetted components are appropriate for the media and operating conditions.

Process Connection

Threaded, flanged, sanitary, in-line, flush, and specialty configurations allow the seal to be matched to the process connection, installation geometry, and maintenance requirements.

Instrument & Installation

Gauge or transmitter type, direct or remote mounting, available installation space, and system arrangement all play a role in the final diaphragm seal configuration.

Application Support

Not Sure Which Seal Fits Your Process?

Send Haygor your process media, pressure, temperature, connection, and instrumentation requirements. Our team can help evaluate the application and determine an appropriate diaphragm seal configuration.

Talk to Haygor Product Configurator
